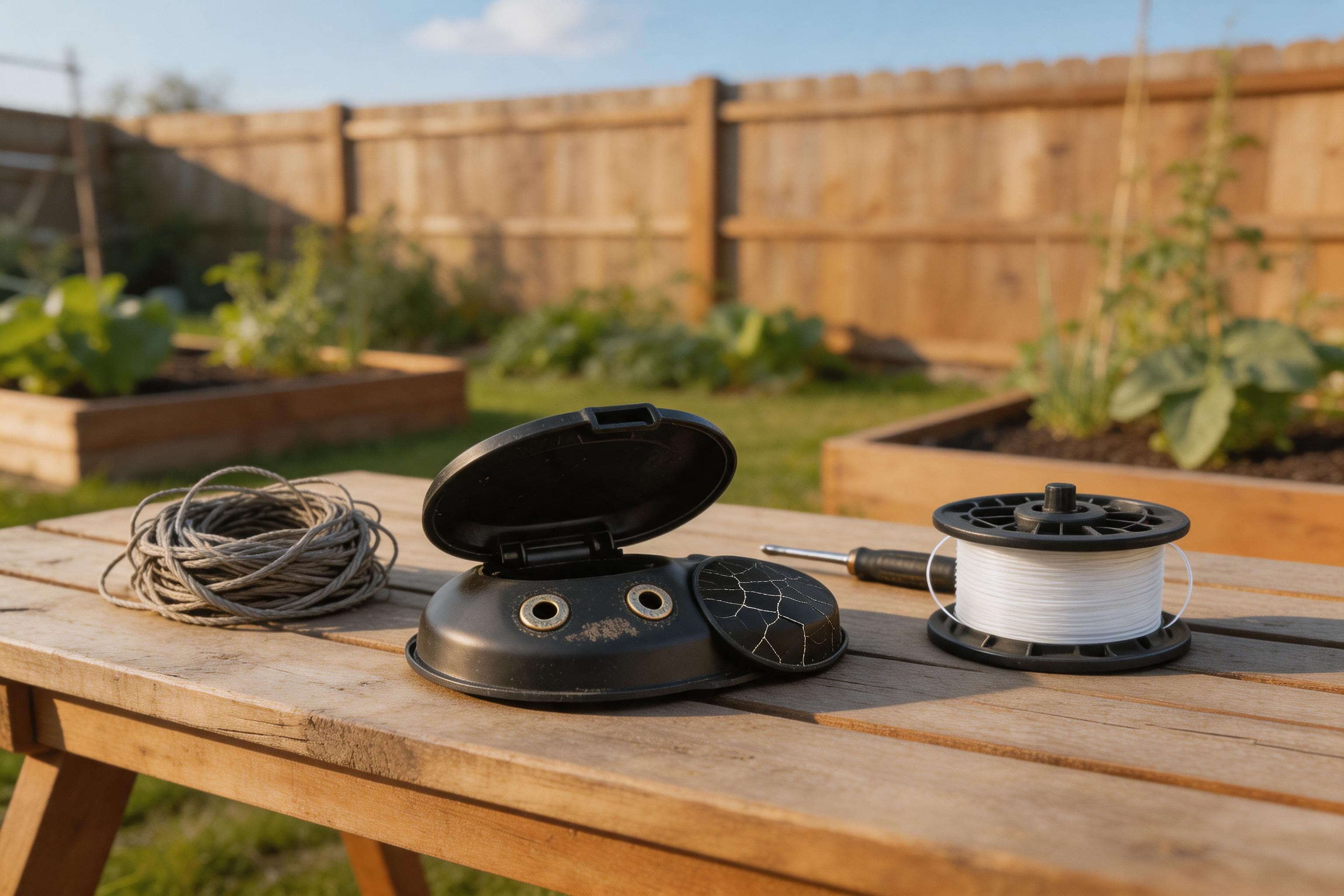

How to tell whether your trimmer head or spool is actually worn out

A fresh spool is the part buyers reach for first because it is cheap, easy to order, and visibly replaceable. The problem is that many bad-feeding trimmers are not failing because the spool is worn out. They are failing because the head around it is already tired.

That distinction matters. A new spool inside a worn head may work for ten minutes, then go right back to binding, overfeeding, or shredding the line at the eyelets.

What a worn spool looks like

A spool is usually the real problem when:

• the hub is cracked or out of round
• the line channels are chipped
• the spool rocks on its center post
• the wound line keeps crossing itself because the guide edges are damaged

Those are spool failures. Replacing the spool is reasonable.

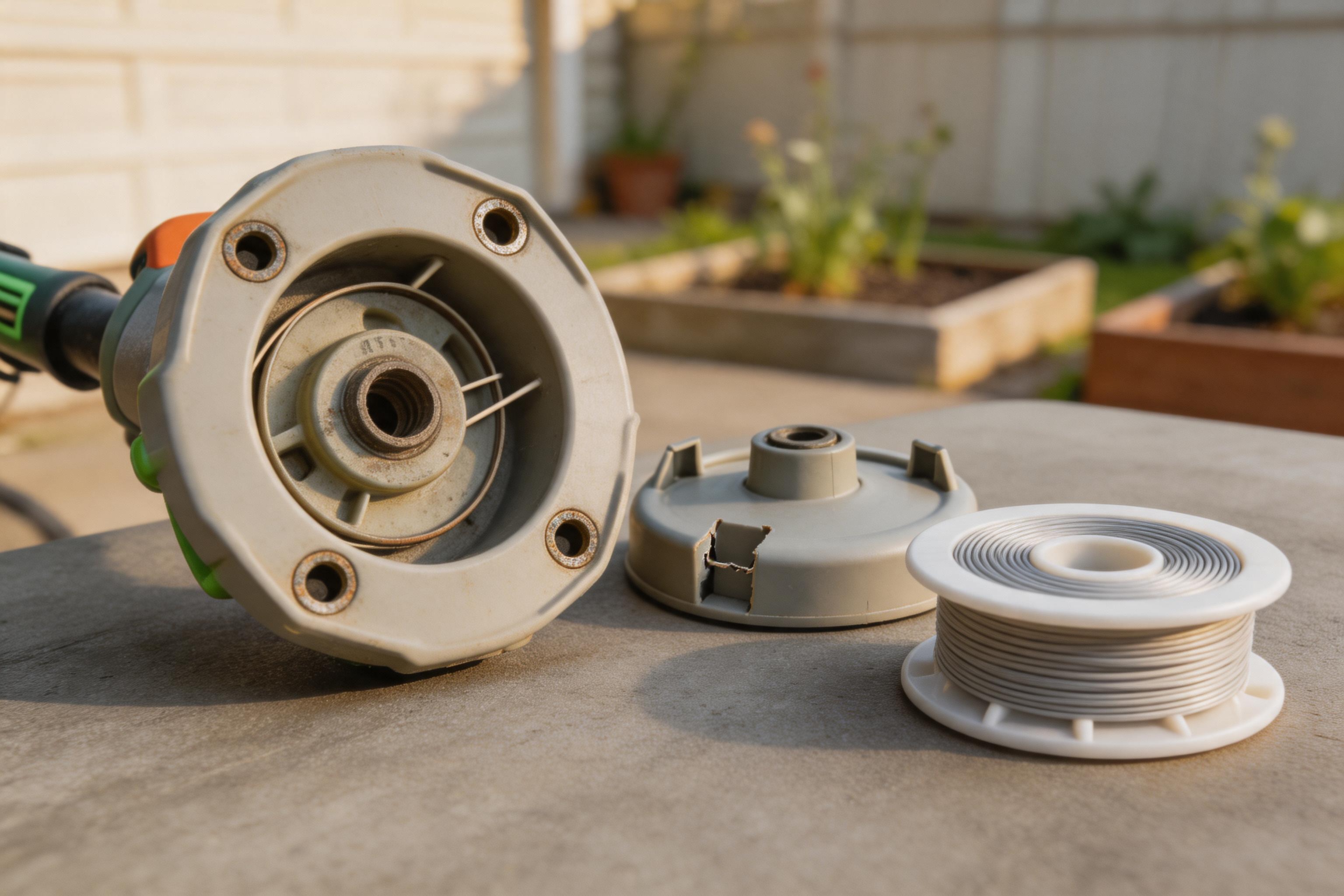

What a worn head looks like

A head assembly is usually the real problem when:

• the eyelets have sharp wear grooves
• the cap tabs no longer latch evenly
• the spring seat is distorted
• the bump knob threads are chewed up
• the housing lets the spool wobble even with the correct part installed

That comparison is the one most buyers need. If the plastic around the spool is already worn, a new spool only masks the problem for a short time.

The false alarms

Three things often get misdiagnosed as wear:

• brittle old line stored in heat
• packed grass and dirt under the cap
• wrong line diameter in an otherwise healthy head

All three can make a good head feed badly. Clean the head and load the correct line before calling the hardware worn out.

A five-minute backyard test

Use this sequence before ordering parts:

1. remove the battery or unplug the spark plug lead
2. open the head and clear all old line fragments
3. inspect eyelets, cap tabs, spring, and hub fit
4. load known-correct line or a known-correct spool
5. test feed over open grass, not against concrete

If feed is still inconsistent after that, the head is a better suspect than the fresh spool.

When to replace the whole head

Replace the full head assembly when the eyelets are cutting line, the cap no longer locks square, or the internal post has worn enough to let the spool tilt. Those are structural wear points. They do not improve with patience.

The right diagnosis often saves money by spending a little more once. A wrong diagnosis buys three cheap spools and still leaves the trimmer annoying to use.
